Griffin Instruments Inc.

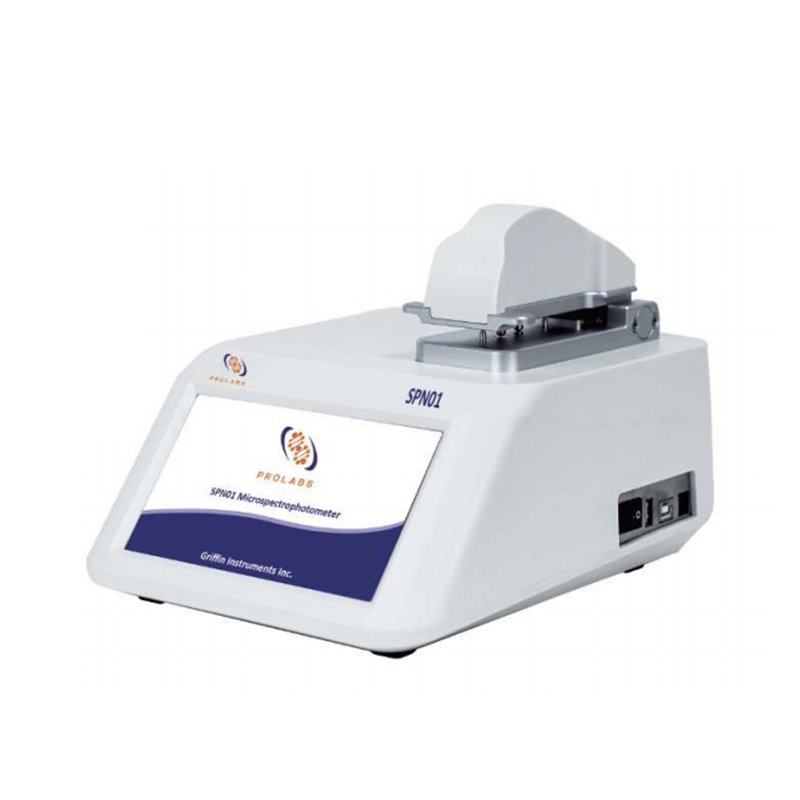

SPN01 Nano Spectrophotometer

SKU:

SPN01

Features
Friendly Android operating system with 7-inch touchscreen

Cuvette slot available for bacterial/microbial concentration tests

Measurement without dilution, test results displayed and easy to read

Long-life Xenon flash lamp, 10° flashes

Reliable and quick USB data output for analysis

No computer required for measurement and data storage

lmage and excel table can be output

External printer optional

Only 0.5 ~2 μl sample volume required, which can be recycledafter testing, ideal for precious samples

Specifications

Model SPN01
Sample Volume 0.5~2.0μI
Absorbance Accuracy ±1%(7.332 Abs at 260nm)
Wavelength Accuracy ±1nm
Absorbance Precision 0.002Abs
Dimension(W×D×H) 270x210x196(mm)
Absorbance Range(Equaled 10mm) 0.02-300A:Cuvette(0D600):0~4A
Wavelength 180-910nm;Cuvette(0D600):600±8nm
Nucleic Acid Range 2~15000ng/μl(ds DNA)

Specifications

Model SPNO1
Protein Detection Range BSA400mg/m;lgG 290mg/ml
Sample Pedestal 304 Stainless Steel and Quartz Fiber
Light Source Xenon flash lamp
Path Length 0.05mm、0.2mm、1.0mm
Detector 2048 -Element Linear Filicon CMOS Array
Spectral Resolution <1.5nm(FWHM @Hg 253.7nm)
Operation System Android
Measurement Time <6S
Data Export USB
Power Adaptor 12V 4A
Standby Power 5W
Weight 3.5kg
Power 48W
